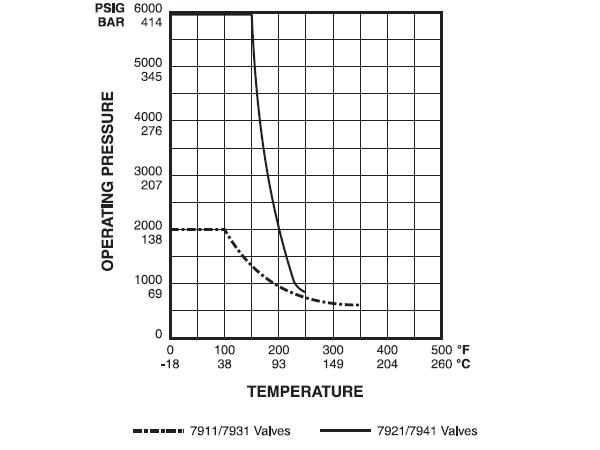

  • Flow-Curve

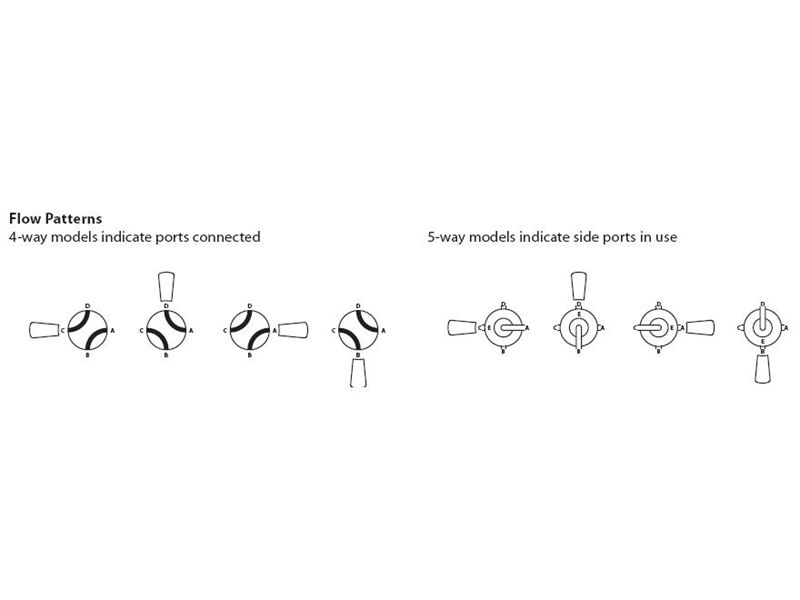

  • Flow Diagrams 4-way and 5-way

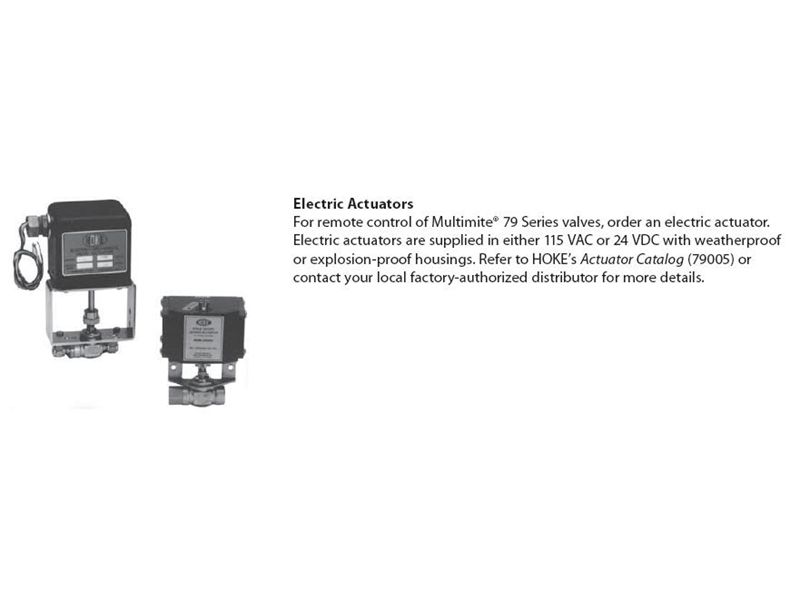

  • Ordering Options
  • 79-Series_secondary
4- and 5-way Trunnion Valves
Multimite 4-way, or dual switching valves allow two distinct flow paths to be used at the same time. The 5-way, or diverter valves off er the same functionality as 3-way valves except with four alternate paths.

Typical Applications
4-way valves
  • Actuator cycling
  • Pressure selecting and venting
  • Alternate sampling and distribution

    • 5-way valves
  • Sampling systems
  • Distribution systems
  • Instrument range selection
    • Unit of Measure

    Item #

    End Connections

    Body Material

    Type

    Operating Pressure Range

    Operating Temperature Range

    Orifice

    Cv

    CADPartID
    N/A 1/4" Gyrolok N/A 316 Stainless Steel N/A 4-way model N/A 2000 psig at 70° F (138 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.166 in4.20 mm N/A 0.47 N/A CAD Icon (for items table)
    N/A 1/4" NPT Female N/A 316 Stainless Steel N/A 4-way model N/A 2000 psig at 70° F (138 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.166 in4.20 mm N/A 0.54 N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 316 Stainless Steel N/A 4-way model N/A 6000 psig at 70° F (414 bar at 21° C) N/A 0 to +250 ºF-18 to +121 ºC N/A 0.166 in4.20 mm N/A 0.47 N/A CAD Icon (for items table)
    N/A 1/4" NPT Female N/A 316 Stainless Steel N/A 4-way model N/A 6000 psig at 70° F (414 bar at 21° C) N/A 0 to +250 ºF-18 to +121 ºC N/A 0.166 in4.20 mm N/A 0.54 N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 316 Stainless Steel N/A 5-way model N/A 2000 psig at 70° F (138 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.187 in4.70 mm N/A 0.51 N/A CAD Icon (for items table)
    N/A 1/4" NPT Female N/A 316 Stainless Steel N/A 5-way model N/A 2000 psig at 70° F (138 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.187 in4.70 mm N/A 0.66 N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 316 Stainless Steel N/A 5-way model N/A 6000 psig at 70° F (414 bar at 21° C) N/A 0 to +250 ºF-18 to +121 ºC N/A 0.187 in4.70 mm N/A 0.51 N/A CAD Icon (for items table)
    N/A 1/4" NPT Female N/A 316 Stainless Steel N/A 5-way model N/A 6000 psig at 70° F (414 bar at 21° C) N/A 0 to +250 ºF-18 to +121 ºC N/A 0.187 in4.70 mm N/A 0.66 N/A CAD Icon (for items table)
