  • 1600-Series_primary
  • Materials of Construction

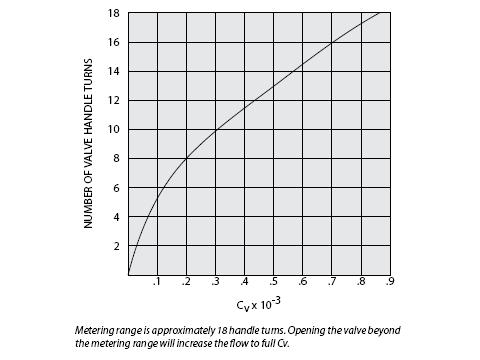

  • Flow-Curve
  • 1600-Series_secondary
Forged Metering Valves

Typical Applications
  • Chromatography
  • Mass Spectroscopy
  • Sampling and fine metering
  • Pollution analyzing instrumentation


    • Unit of Measure

    Item #

    Connections - Inlet

    Connections - Outlet

    Flow Pattern

    Body Material

    Operating Pressure Range

    Operating Temperature Range

    Cv

    CADPartID
    N/A 1/8" Gyrolok N/A 1/8" Gyrolok N/A Globe N/A 316 Stainless Steel N/A 5000 psig at 70° F (345 bar at 21° C) N/A -20 to +250 ºF-29 to +121 ºC N/A 0.0008 in N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 1/4" Gyrolok N/A Globe N/A 316 Stainless Steel N/A 5000 psig at 70° F (345 bar at 21° C) N/A -20 to +250 ºF-29 to +121 ºC N/A 0.0008 in N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 1/4" Gyrolok N/A Globe N/A Brass N/A 3500 psig at 70° F (242 bar at 21° C) N/A -20 to +250 ºF-29 to +121 ºC N/A 0.0008 in N/A CAD Icon (for items table)
    N/A 1/4" NPT Male N/A 1/4" NPT Male N/A Globe N/A Brass N/A 3500 psig at 70° F (242 bar at 21° C) N/A -20 to +250 ºF-29 to +121 ºC N/A 0.0008 in N/A CAD Icon (for items table)
    N/A 1/8" Gyrolok N/A 1/8" Gyrolok N/A Angle N/A 316 Stainless Steel N/A 5000 psig at 70° F (345 bar at 21° C) N/A -20 to +250 ºF-29 to +121 ºC N/A 0.0008 in N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 1/4" Gyrolok N/A Angle N/A 316 Stainless Steel N/A 5000 psig at 70° F (345 bar at 21° C) N/A -20 to +250 ºF-29 to +121 ºC N/A 0.0008 in N/A CAD Icon (for items table)
