  • Ultramite-7015-Series_primary
  • Materials of Construction

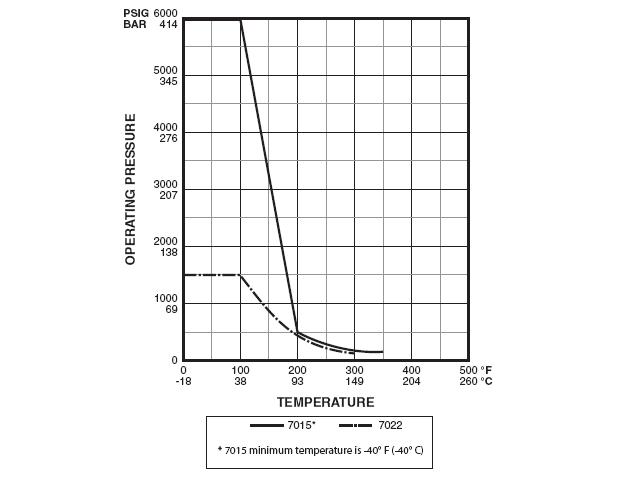

  • Flow-Curve
  • Flow Diagrams 2-way valve
  • Ultramite-7015-Series_secondary
2-way valves

Typical Applications
  • High pressure test stands
  • Sampling lines
  • Instrument lines
  • Analyzer labs
    • Unit of Measure

    Item #

    Connections - Inlet

    Connections - Outlet

    Body Material

    Operating Pressure Range

    Operating Temperature Range

    Orifice

    Cv

    CADPartID
    N/A 1/4" Gyrolok N/A 1/4" Gyrolok N/A 316 Stainless Steel N/A 6000 psig at 70° F (414 bar at 21° C) N/A -40 to +300 ºF-40 to +149 ºC N/A 0.187 in4.80 mm N/A 0.80 N/A CAD Icon (for items table)
    N/A 1/4" NPT Male N/A 1/4" Gyrolok N/A 316 Stainless Steel N/A 6000 psig at 70° F (414 bar at 21° C) N/A -40 to +300 ºF-40 to +149 ºC N/A 0.187 in4.80 mm N/A 0.80 N/A CAD Icon (for items table)
    N/A 1/4" NPT Male N/A 1/4" NPT Female N/A 316 Stainless Steel N/A 6000 psig at 70° F (414 bar at 21° C) N/A -40 to +300 ºF-40 to +149 ºC N/A 0.25 in6.30 mm N/A 1.40 N/A CAD Icon (for items table)
    N/A 1/4" NPT Female N/A 1/4" NPT Female N/A 316 Stainless Steel N/A 6000 psig at 70° F (414 bar at 21° C) N/A -40 to +300 ºF-40 to +149 ºC N/A 0.25 in6.30 mm N/A 1.40 N/A CAD Icon (for items table)
    N/A 3/8" Gyrolok N/A 3/8" Gyrolok N/A 316 Stainless Steel N/A 6000 psig at 70° F (414 bar at 21° C) N/A -40 to +300 ºF-40 to +149 ºC N/A 0.25 in6.30 mm N/A 1.40 N/A CAD Icon (for items table)
    N/A 1/4" Gyrolok N/A 1/4" Gyrolok N/A Brass N/A 1500 psig at 70° F (103 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.187 in4.80 mm N/A 0.80 N/A CAD Icon (for items table)
    N/A 1/4" NPT Male N/A 1/4" NPT Female N/A Brass N/A 1500 psig at 70° F (103 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.25 in6.30 mm N/A 1.40 N/A CAD Icon (for items table)
    N/A 1/4" NPT Female N/A 1/4" NPT Female N/A Brass N/A 1500 psig at 70° F (103 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.25 in6.30 mm N/A 1.40 N/A CAD Icon (for items table)
    N/A 3/8" Gyrolok N/A 3/8" Gyrolok N/A Brass N/A 1500 psig at 70° F (103 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.25 in6.30 mm N/A 1.40 N/A CAD Icon (for items table)
    N/A 1/8" Gyrolok N/A 1/8" Gyrolok N/A 316 Stainless Steel N/A 1500 psig at 70° F (103 bar at 21° C) N/A 0 to +350 ºF-18 to +177 ºC N/A 0.093 in2.30 mm N/A 0.23 N/A CAD Icon (for items table)
    Showing 10 of 19  |  View All 19 Standard Items
