Selectomite 76 Series
General Purpose Ball Valves
3-way Trunnion Valves
Developed for high pressure, side-loading applications, the 316 stainless steel trunnion is supported and held securely in position by two composite bearings. Encapsulated Nylatron seats provide a positive seal, resulting in leak-tight sealing between all ports to 6000 psig differential, reducing operating torque and increasing cycle life. The handle points to the side port in use; when perpendicular to the side ports, it indicates the shutoff position.
Typical ApplicationsCompressed natural gas dispensing
Instrument air lines
Sampling systems
2-way gauge readout of line pressure
Down hole control systems on off shore drilling platforms
Developed for high pressure, side-loading applications, the 316 stainless steel trunnion is supported and held securely in position by two composite bearings. Encapsulated Nylatron seats provide a positive seal, resulting in leak-tight sealing between all ports to 6000 psig differential, reducing operating torque and increasing cycle life. The handle points to the side port in use; when perpendicular to the side ports, it indicates the shutoff position.
Typical Applications
Item # |
End Connections |
Body Material |

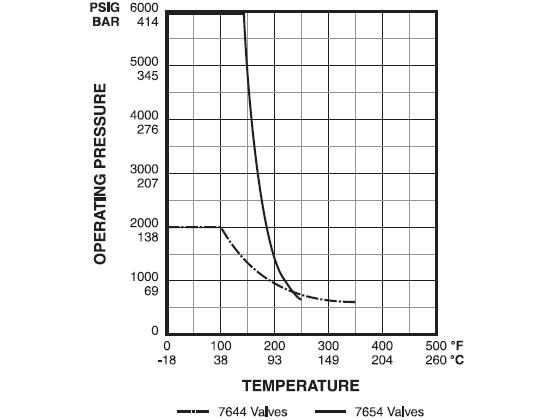

Operating Pressure Range |
Operating Temperature Range |
Orifice |
Cv |
CADPartID |
|---|---|---|---|---|---|---|---|
| 7644G4Y | End Connections 1/4" Gyrolok | Body Material 316 Stainless Steel | Operating Pressure Range 6000 psig at 70° F (414 bar at 21° C) | Operating Temperature Range 0 to +250 ºF-18 to +121 ºC | Orifice 0.187 in4.70 mm | Cv 0.56 |
CADPartID
|
| 7644F4Y | End Connections 1/4" NPT Female | Body Material 316 Stainless Steel | Operating Pressure Range 6000 psig at 70° F (414 bar at 21° C) | Operating Temperature Range 0 to +250 ºF-18 to +121 ºC | Orifice 0.187 in4.70 mm | Cv 0.56 |
CADPartID
|
| 7644G6Y | End Connections 3/8" Gyrolok | Body Material 316 Stainless Steel | Operating Pressure Range 6000 psig at 70° F (414 bar at 21° C) | Operating Temperature Range 0 to +250 ºF-18 to +121 ºC | Orifice 0.187 in4.70 mm | Cv 0.56 |
CADPartID
|
| 7654G4Y | End Connections 1/4" Gyrolok | Body Material 316 Stainless Steel | Operating Pressure Range 2000 psig at 70° F (138 bar at 21° C) | Operating Temperature Range 0 to +350 ºF-18 to +177 ºC | Orifice 0.187 in4.70 mm | Cv 0.56 |
CADPartID
|
| 7654F4Y | End Connections 1/4" NPT Female | Body Material 316 Stainless Steel | Operating Pressure Range 2000 psig at 70° F (138 bar at 21° C) | Operating Temperature Range 0 to +350 ºF-18 to +177 ºC | Orifice 0.187 in4.70 mm | Cv 0.56 |
CADPartID
|
